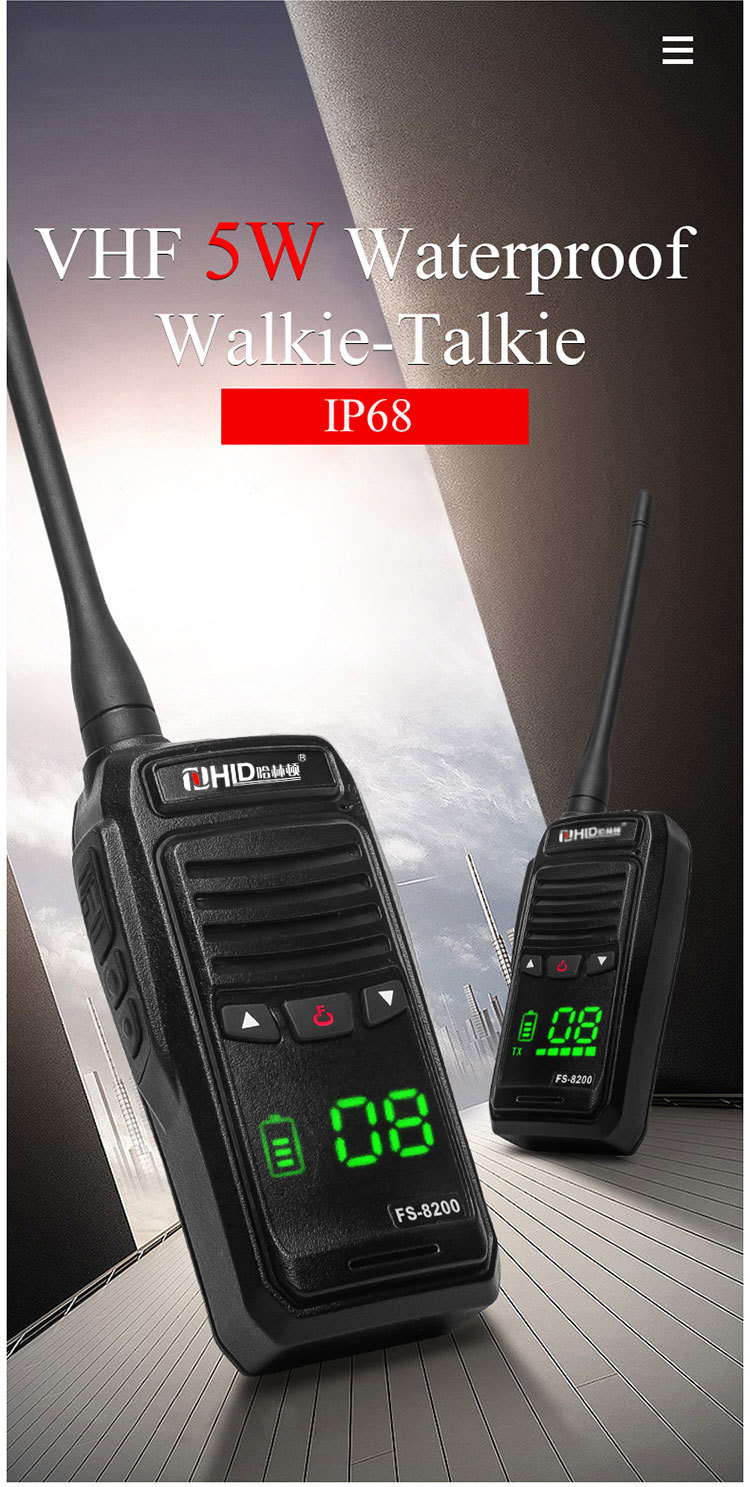

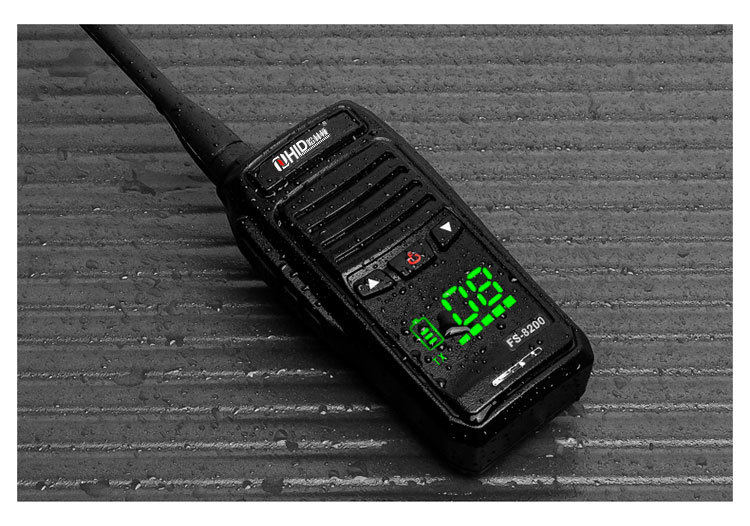

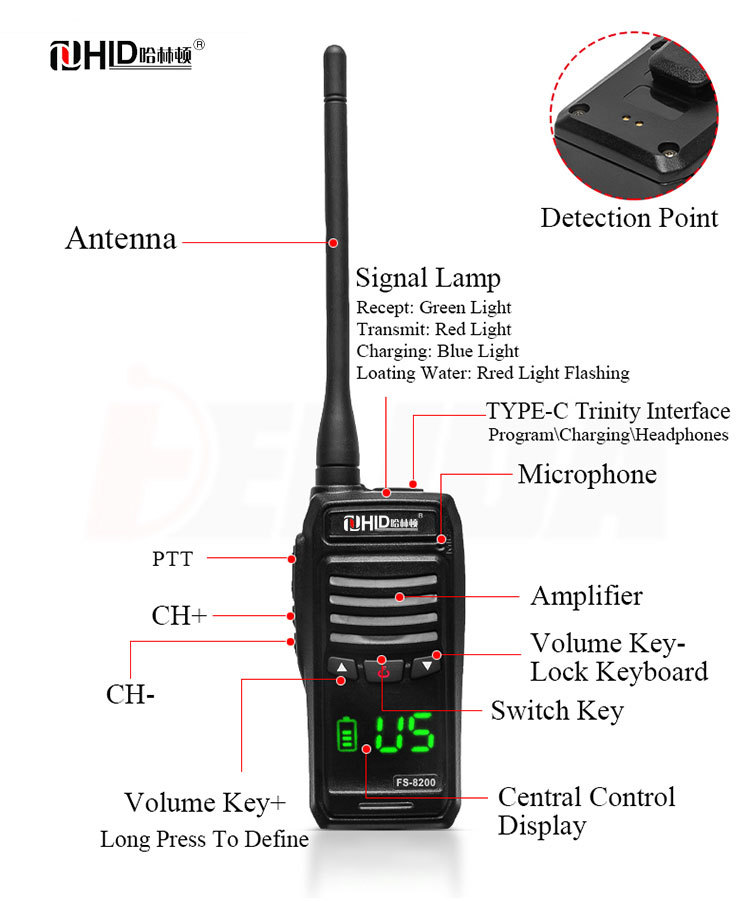

5W VHF 136-174mhz Waterproof Walkie Talkie FS-8200
Classify:
Single band walkie-talkie
Keywords:
- Product description
-
Main Features
Squelch level
Frequency step
High/Low power output
Save power mode
CTCSS/DCS

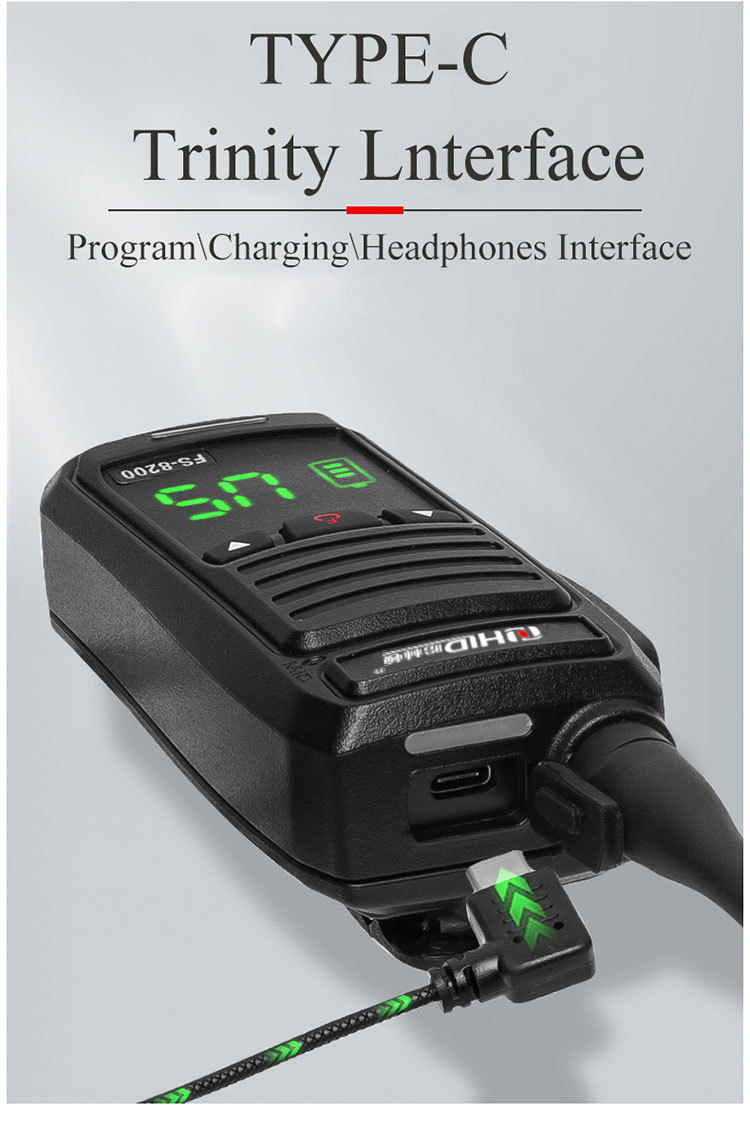

PC programmed

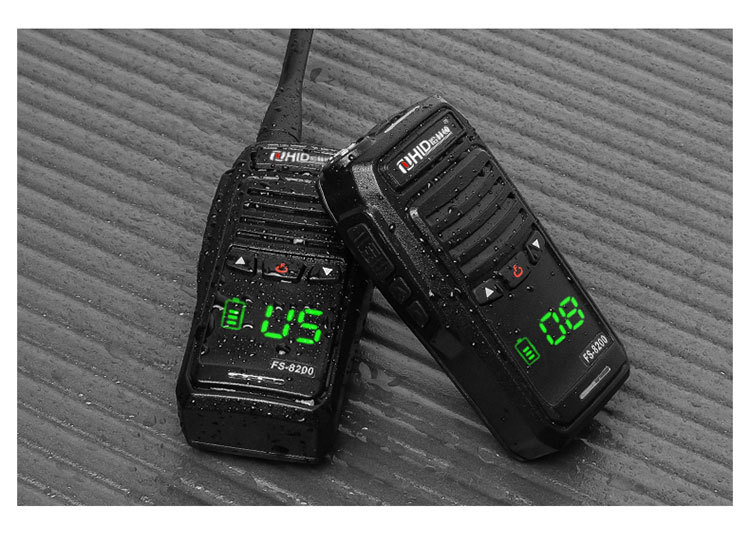

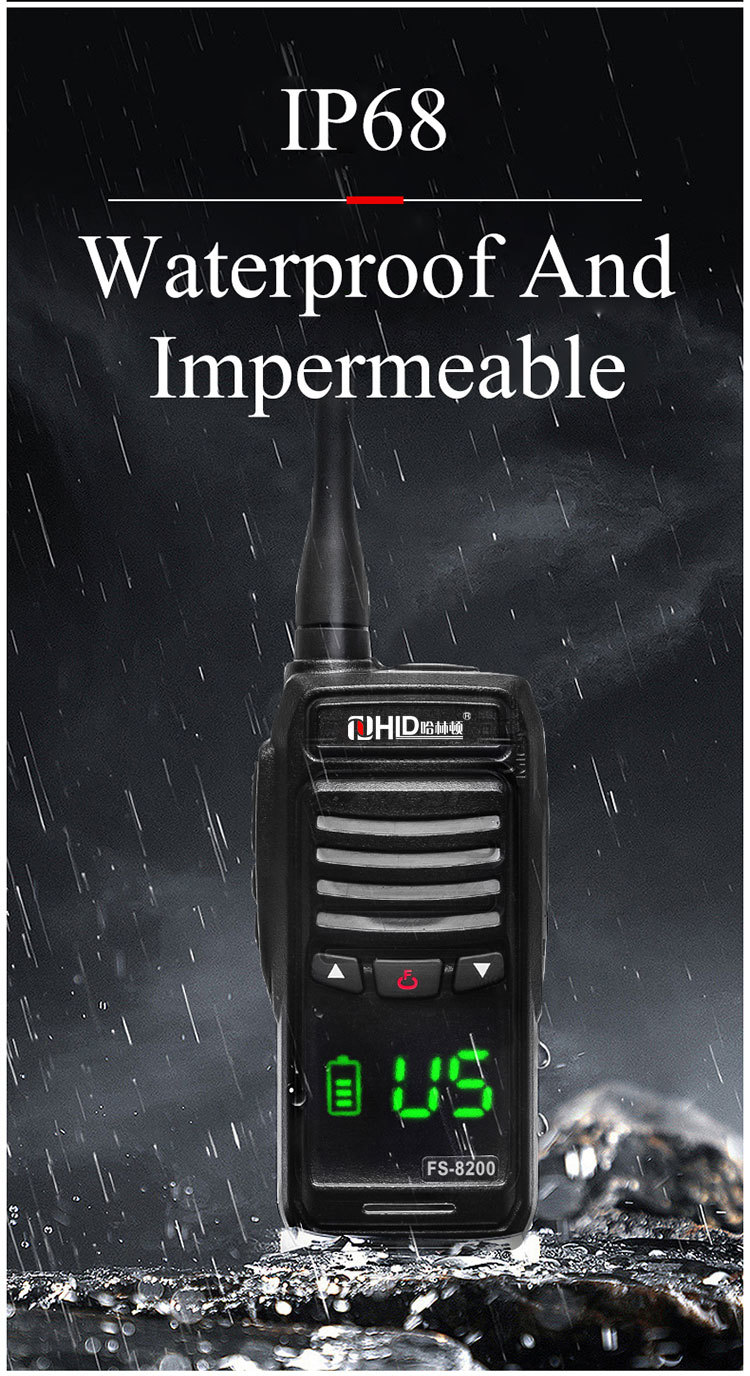

IP68 waterproof

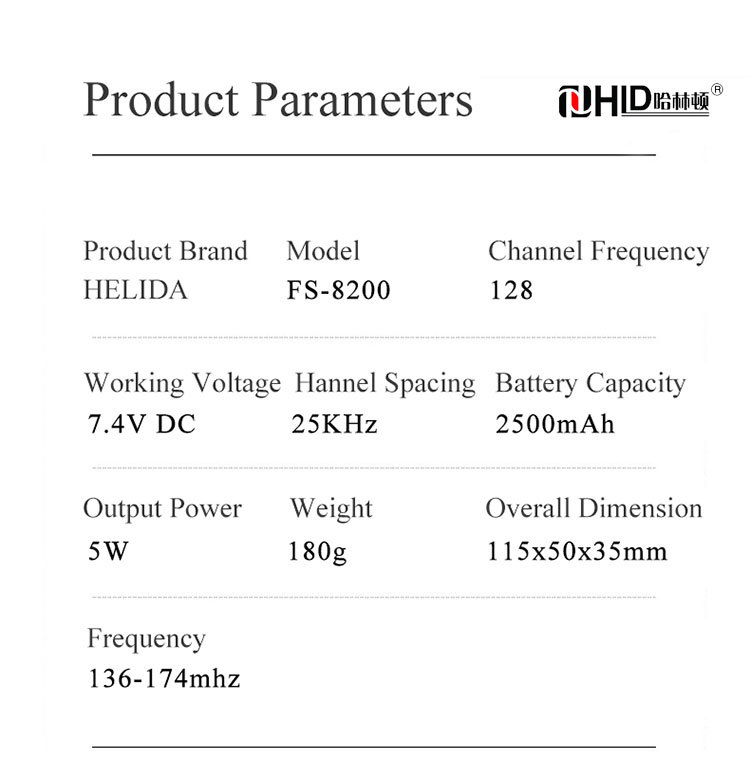

detail Specification
Frequency range: 136-174MHz

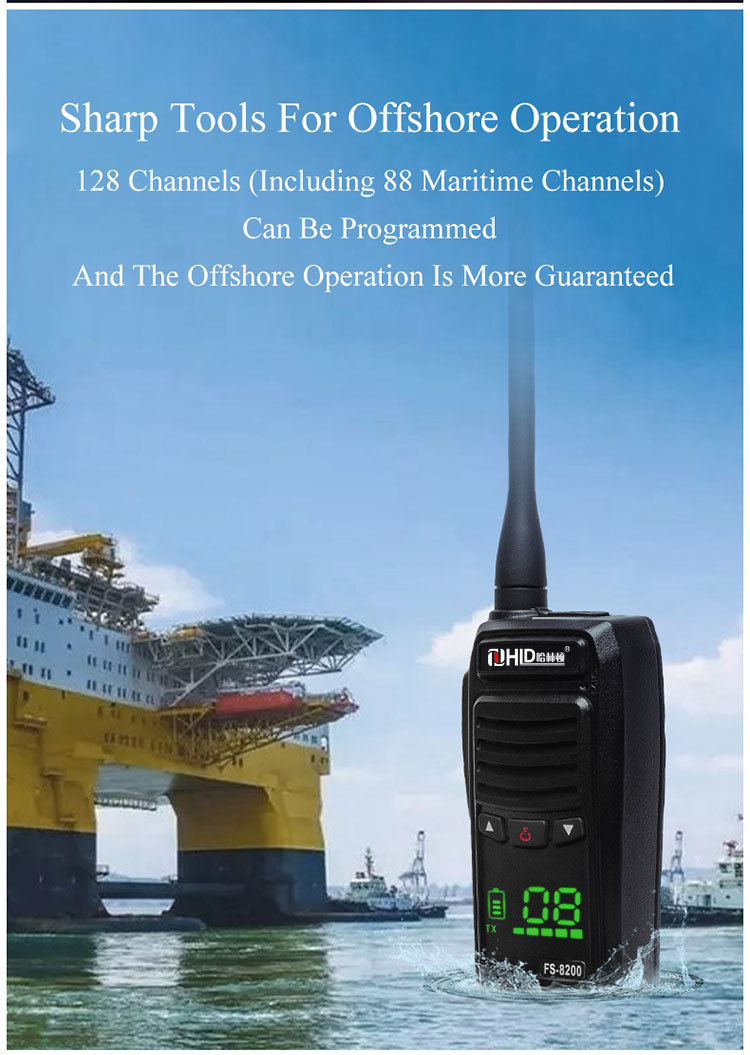

Number of channel: 128
Operating voltage: DC:7.4V
channel interval: 25/12.5KHz
Antenna impedance: 50?
Dimension: 58×120×34mm
Weight: 200gFrequency range
136-174 MHz
Rated Voltage(DC)
DC7.4V(Chargeable Li-ion battery)
Waterproof grade
IP68
Memory channel
128 channels
battery
2500mah
Antenna configuration
Inductively loaded antenna
Antenna Impedance
50Ω
Working manner
Same frequency simplex operation or different frequency simplex operation
Ground method
negative pole
Launching parts

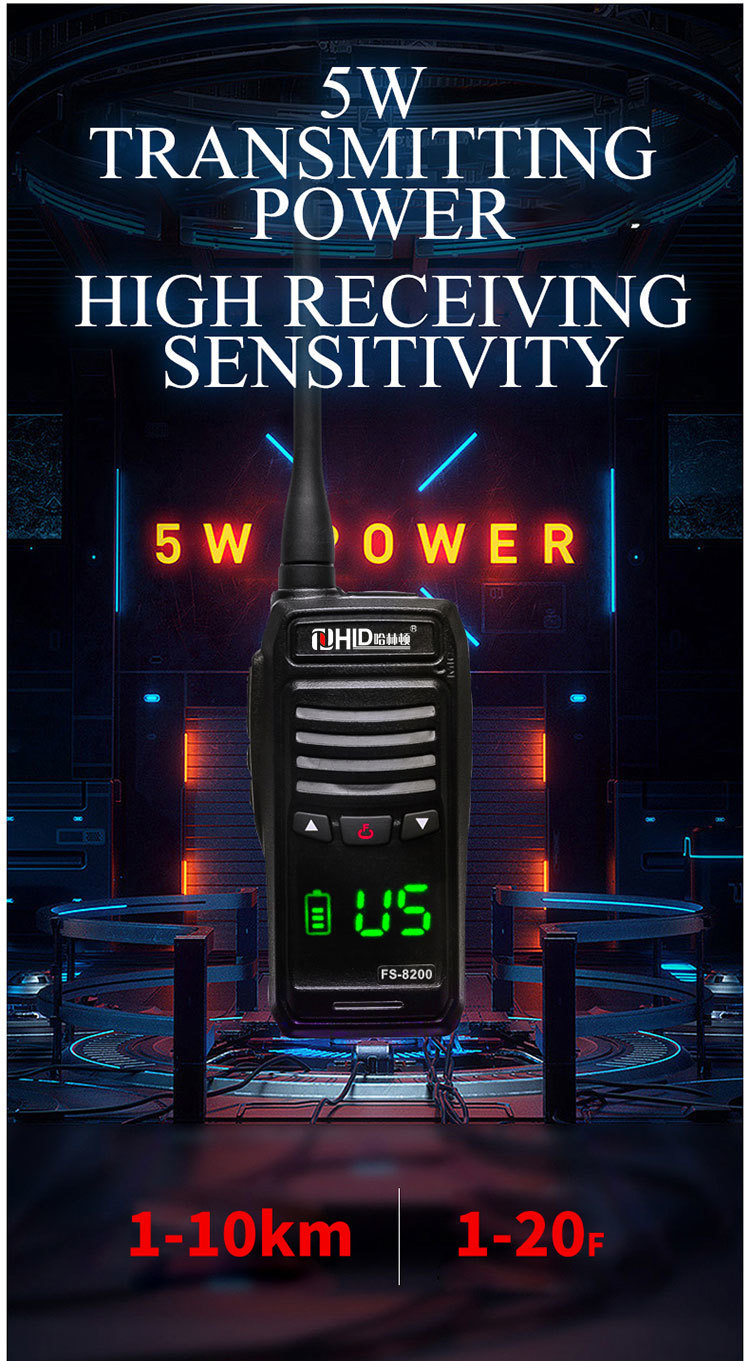

Output power
5W
Modulation mode
Frequency modulation
Maximum frequency deviation
≤±5KHz
Residual wave radiation
<-60dB
Pre emphasis character
Per fold frequency patch 6dB
Emission current
≤1200mA
Receiver
Sensitivity
<0.16μV(12dB SINAD)
Silent sensitivity
<0.20μV
Infer modulation
interference resistance
50dB
Sound frequency power
≥300mW
Receiving
≤100mA
Silent waiting
20mA
Tag list
Product packaging
standard export carton packing, standard export seaworthy parcel
Mode of delivery
According to the needs of customers, small quantity, express delivery; Large quantity, can be transported by sea
Custom Services
Committed to innovation, become the forefront of the radio industry, support OEM / ODM / OBM customization
Qualification Certification
M6P FCC
M6P CE
M2D FCC
